Pinball LED Display for Williams, WPC (alpha-numeric)

LED Pinball Display for Williams, WPC^® (alpha-numeric)

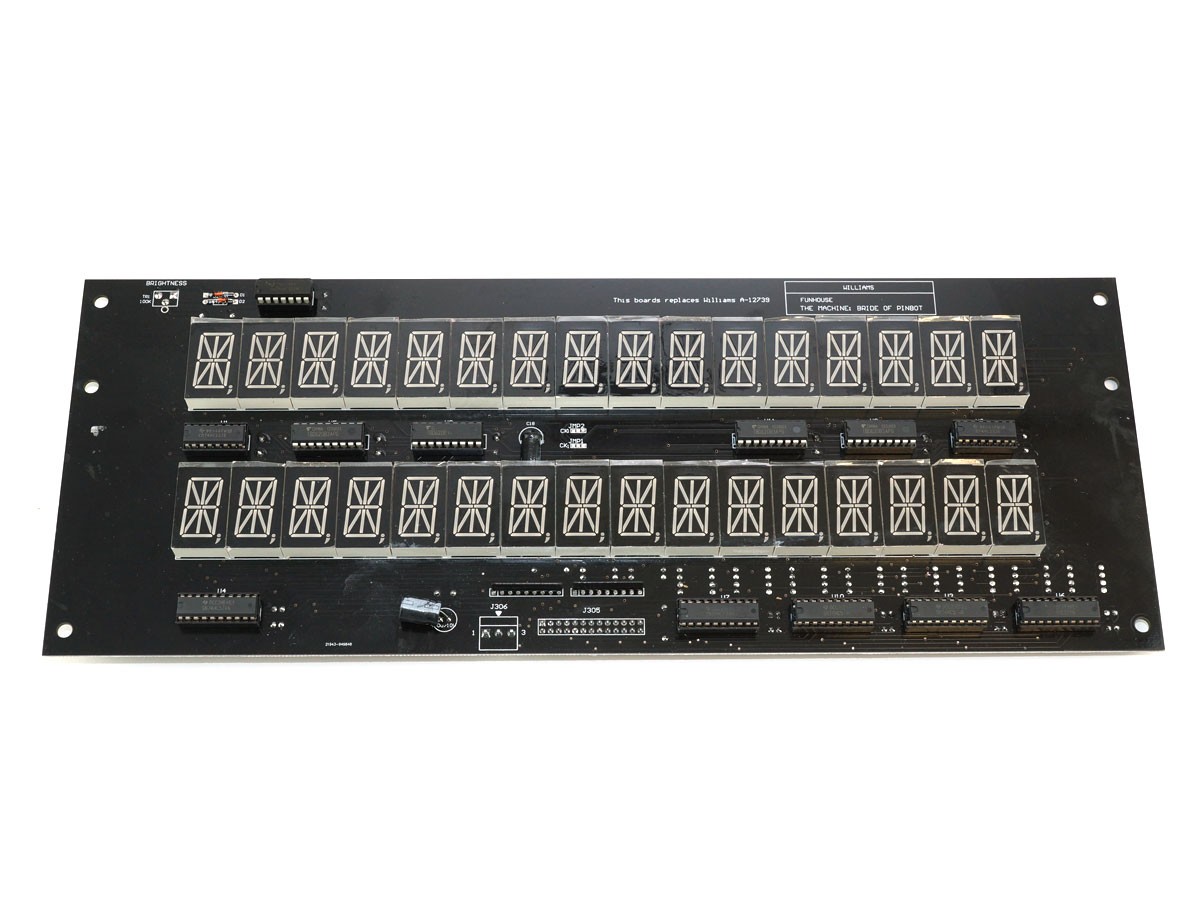

This LED display system is a complete, drop-in replacement display system. The low-voltage, high-efficiency displays use only your game's 5-volt supply and will work on pinball machines with failed high voltage power supplies. With custom-engineered color-matched LED (light emitting diode) blocks, the displays retain the game’s factory look while adding features like adjustable brightness and self-test.

Features:

- Plug & Play installation
- Adjustable brightness
- Low power consumption uses only 5 volt power and no high voltage
- Beautiful black finish
- Crisp alpha and numeric digits illuminate in original font and color

Compatible Games:

- Funhouse
- The Machine: Bride of Pinbot

Installation Instructions:

1. Remove Old Displays. Unplug the AC power from your pinball machine. Remove game backglass and open the backbox insert door. Remove the speaker/display panel and unplug all display boards. Remove the original display and driver boards.
2. Mount the new boards. Hand-tighten the screws so you may align the displays with the backglass windows before permanently securing the boards. If further alignment is necessary, you may adjust the insert panel door hinges and latch in the backbox.
3. Connect the cables. The ribbon cable goes to the connetor labeled MPU Cable. Ribbon cables are not keyed and it is possible to mis-align the connectors. Observe correct polarity on all ribbon cables - the RED striped wires on all ribbon cables go to PIN #1 (also labeled as Red) on the board.
4. Double-check all connections, plug in the machine, and turn the game on.
5. Pin1= 5V, Pin3= Ground
